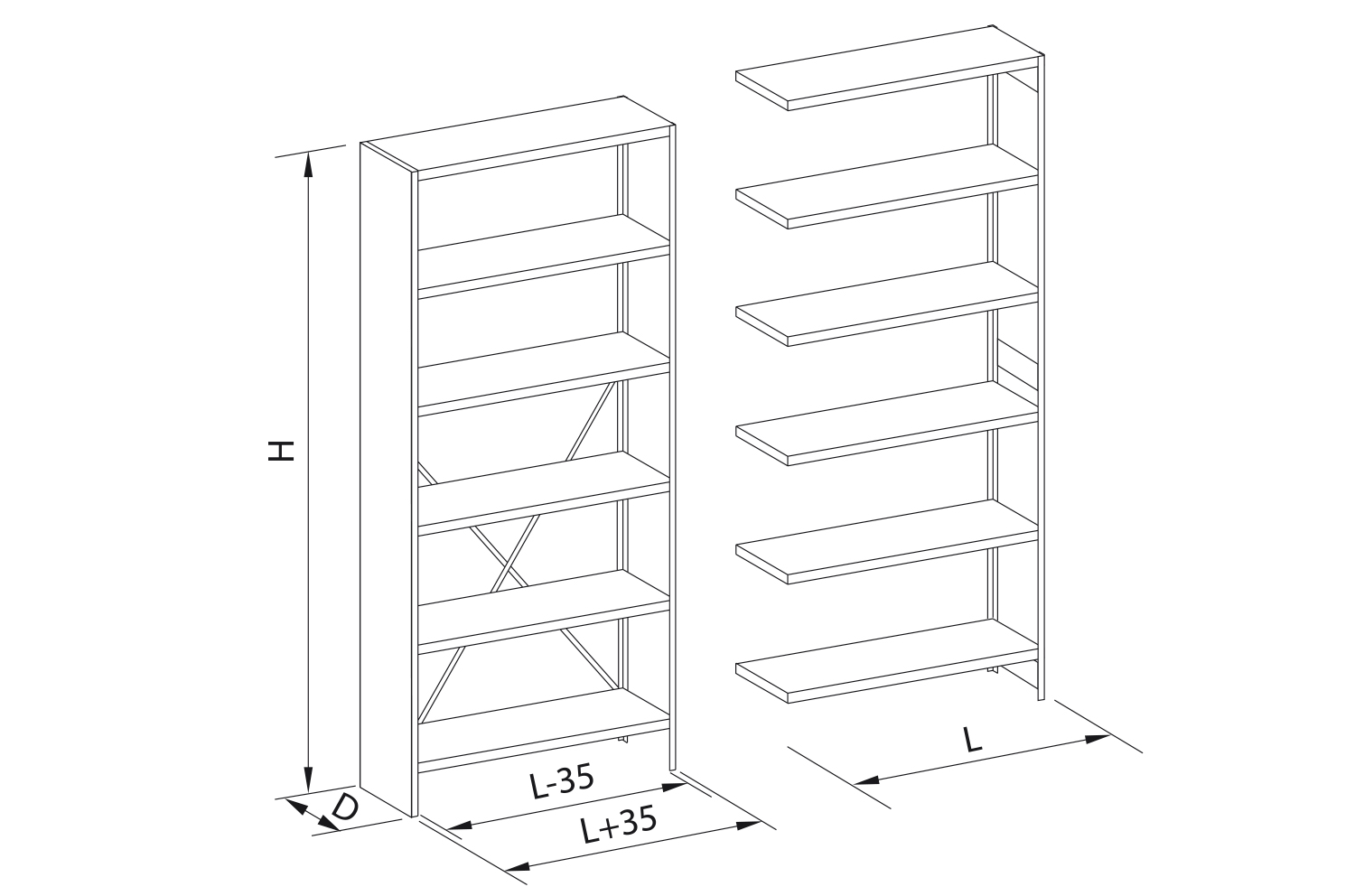

PUNTA steel shelf system is a practical shelving solution for archives, offices and general use. It can be assembled quickly and easily without tools; shelves are mounted without separate brackets. The following measurements are available: -standard heights: 1639, 2005, 2371 mm; -standard depths: 300, 400, 500 or 600 mm; -standard widths/ shelves: 770, 970, 1170 mm; standard widths/ sections: 835, 1035, 1235 mm (shelf width with end frame). The shelves are assembled from the main and extension sections according to the arrangement in the room, the extension section is attached to the posts of the main section. Shelves can be adjusted in 61 mm increments. Shelf load-bearing capacities: 80 - 200 kg. Standard color: RAL9002 grey-white, galvanized fittings. The functionality of the shelves can be significantly increased with additional equipment, for example, side walls, back walls, drawers, dividers, shelves with hanging lids, hangers etc. | ||||||||||||||||||||||||
|
Warehouse shelves (PUNTA)
| ||||||||||||||||||||||||
|
| ||||||||||||||||||||||||
|

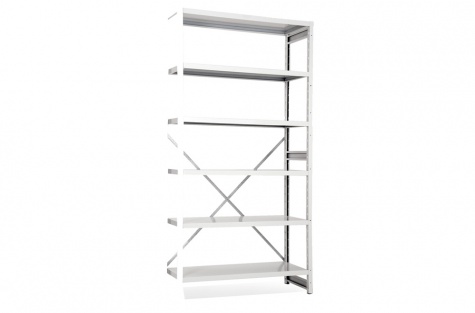

The storage shelf, extension section 400 x 1000 x 2005 mm
Product code:
Dimensions: 400 (L) x 1000 (W) x 2005 (H) mm.
Finish: powder paint.
Color: white RAL 9002
The crossed support is ...
The storage shelf, extension section 500 x 1000 x 2005 mm
Product code:
Dimensions: 500 (L) x 1000 (W) x 2005 (H) mm.
Finish: powder paint.
Color: white RAL 9002
The crossed support is ...
The storage shelf, extension section 500 x 1000 x 2371 mm
Product code:
Dimensions: 500 (L) x 1000 (W) x 2371 (H) mm.
Finish: powder paint.
Color: white RAL 9002
The crossed support is ...
The storage shelf, extension section 600 x 1000 x 2005 mm
Product code:
Dimensions: 600 (L) x 1000 (W) x 2005 (H) mm.
Finish: powder paint.
Color: white RAL 9002
The crossed support is ...
The storage shelf, extension section 600 x 1000 x 2371 mm
Product code:
Dimensions: 600 (L) x 1000 (W) x 2371 (H) mm.
Finish: powder paint.
Color: white RAL 9002
The crossed support is ...
The storage shelf, extension section, 400 x 1000 x 2371 mm
Product code:
Dimensions: 400 (L) x 1000 (W) x 2005 (H) mm.
Finish: powder paint.
Color: white RAL 9002
The crossed support is ...

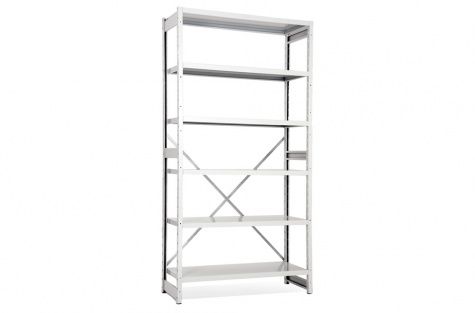

The storage shelf, main section 400 x 1035 x 2005 mm
Product code:
Dimensions: 400 (L) x 1035 (W) x 2005 (H) mm.
Finish: powder paint.
Color: white RAL 9002.
The crossed support is ...
The storage shelf, main section 400 x 1035 x 2371 mm
Product code:
Dimensions: 400 (L) x 1035 (W) x 2371 (H) mm.
Finish: powder paint.
Color: white RAL 9002.
The crossed support is ...
The storage shelf, main section 500 x 1035 x 2005 mm
Product code:
Dimensions: 500 (L) x 1035 (W) x 2005 (H) mm.
Finish: powder paint.
Color: white RAL 9002
The crossed support is ...
The storage shelf, main section 500 x 1035 x 2371 mm
Product code:
Dimensions: 500 (L) x 1035 (W) x 2371 (H) mm.
Finish: powder paint.
Color: white RAL 9002
The crossed support is ...
The storage shelf, main section 600 x 1035 x 2005 mm
Product code:
Dimensions: 600 (L) x 1035 (W) x 2005 (H) mm.
Finish: powder paint.
Color: white RAL 9002
The crossed support is ...
The storage shelf, main section 600 x 1035 x 2371 mm
Product code:
Dimensions: 600 (L) x 1035 (W) x 2371 (H) mm.
Finish: powder paint.
Color: white RAL 9002
The crossed support is ...
|
